Signs of HVAC Condensation Problems

HVAC condensation becomes a problem when moisture stops draining through the system and starts showing up around the unit, ducts, vents, ceilings, or nearby building materials. Water near the air handler, sweating ductwork, damp insulation, musty odors, and stains around vents are the most common warning signs.

Some condensation is normal when an air conditioner cools humid air, but it should stay inside the coil, drain pan, and condensate line. If moisture is dripping, staining, pooling, or returning during cooling cycles, the system may be leaking condensation into places that should stay dry.

Before focusing on specific symptoms, it helps to understand how condensation fits into broader moisture detection practices. If you’re evaluating multiple moisture sources in your home, reviewing how to find hidden moisture in different areas of your home can help you determine whether HVAC condensation is the likely cause.

What HVAC Condensation Normally Looks Like

Not all HVAC condensation is a problem. During cooling, moisture should collect on the evaporator coil, drain into the pan, and leave through the condensate line without wetting nearby materials.

Small amounts of water draining from the system

Most air conditioning systems remove moisture from indoor air as they cool it. That moisture collects on cold evaporator coils and flows into a drain pan before leaving the home through a condensate drain line.

Normal behavior includes:

• Water draining from the outdoor condensate line during cooling
• A dry area around the indoor air handler
• No visible moisture on nearby building materials
• No musty odors during operation

In humid climates or during peak summer cooling, you may see steady drainage outside. This is usually a good sign that your system is removing moisture effectively.

Dry surrounding materials and insulation

Under normal conditions, insulation around ducts and air handlers should remain dry. The system is designed to contain condensation inside internal components, preventing moisture from escaping into walls, ceilings, or crawl spaces.

If surrounding materials remain dry even during heavy system use, the condensation process is likely functioning correctly.

No visible moisture near vents or ceilings

Supply vents should deliver cool air without producing visible water. Occasionally, very small droplets may appear on metal surfaces during extreme humidity, but they should not drip, spread, or leave stains.

When condensation stays contained within the drainage system, the risk of moisture damage remains low.

Signs Your HVAC System Is Producing Too Much Condensation

When condensation levels exceed what the system can safely handle, moisture begins to escape from controlled drainage areas. This is one of the earliest stages of HVAC condensation problems.

These signs often appear before visible structural damage occurs, making early detection especially important.

Water pooling near the indoor HVAC unit

One of the most recognizable signs of excessive condensation is water collecting near the base of the indoor air handler or furnace.

This usually happens when:

• The drain pan fills faster than it can empty
• The drain line becomes partially blocked
• The pan develops cracks or corrosion
• Airflow restrictions increase condensation production

Small puddles that appear occasionally may seem harmless, but repeated water pooling often signals that moisture is not draining properly. Over time, this moisture can spread into flooring materials or nearby walls.

If water is near electrical components, switches, wiring, or the furnace cabinet, stop using the system until it can be checked safely.

If water repeatedly accumulates in this area, it’s often worth investigating whether a blockage has formed. Detailed inspection methods are covered in how to inspect HVAC drain lines for blockages, which focuses specifically on identifying drainage failures.

Repeated dripping sounds during operation

Dripping noises inside ceilings or walls may indicate that condensation is escaping into areas where it does not belong.

These sounds typically occur when:

• Water builds up inside ductwork
• Drain systems overflow
• Moisture collects on cold surfaces and falls onto nearby materials

A one-time drip sound during heavy cooling may not prove a leak, but repeated dripping from ceilings, walls, or duct chases should be investigated because hidden materials can stay wet after the sound stops.

Unusually high humidity inside the home

When HVAC systems produce excess condensation but fail to remove moisture efficiently, indoor humidity levels may rise instead of falling.

This can feel like:

• Sticky or damp indoor air
• Rooms feeling humid even while cooling is running
• Persistent moisture odors
• Difficulty maintaining comfortable humidity levels

Excess humidity often connects to system-level issues rather than simple drainage failures. Understanding why this happens is explained further in why HVAC systems produce excess condensation, which explores the underlying causes behind abnormal moisture production.

A hygrometer can help confirm whether indoor humidity is staying elevated during cooling. If readings remain high even while the system is running, the issue may involve airflow, sizing, drainage, or broader humidity control rather than a simple surface moisture problem.

Signs Condensation Is Escaping Into Ducts and Building Materials

As condensation problems progress, moisture begins to move beyond the HVAC system itself and into surrounding materials. This stage is where visible damage often starts to appear, especially in ceilings, insulation, and ductwork.

These signs indicate that condensation is no longer contained and may be affecting hidden areas of your home.

Sweating ducts or visible moisture on duct surfaces

One of the most common signs of HVAC condensation problems is ductwork that appears to “sweat.” This happens when warm, humid air contacts the cold surface of metal ducts, causing moisture to form on the outside.

You may notice:

• Water droplets forming along duct surfaces
• Damp insulation wrapped around ducts
• Moisture collecting on nearby framing or surfaces
• Dripping water from exposed duct sections

Occasional condensation may occur in very humid conditions, but persistent sweating is a warning sign. Over time, this moisture can soak insulation and spread into ceilings or walls.

Persistent duct condensation is often linked to airflow or insulation issues, which are explored in more detail in why poor airflow causes moisture problems.

Wet or deteriorating duct insulation

Insulation around ducts is designed to prevent temperature differences that lead to condensation. When it becomes wet, it loses effectiveness and can trap moisture against duct surfaces.

Common warning signs include:

• Insulation that feels damp or heavy
• Discoloration or staining on insulation material
• A musty smell near duct runs
• Insulation pulling away from duct surfaces

Once insulation becomes saturated, it often continues to hold moisture even after the HVAC system stops running. This creates a hidden environment where mold can develop over time.

Water stains on ceilings near vents

Ceiling stains near air vents are frequently misdiagnosed as roof leaks. In many cases, they are actually caused by condensation forming on ducts or vent surfaces above the ceiling.

These stains typically appear as:

• Yellow or brown discoloration around vents
• Soft or slightly sagging drywall
• Paint bubbling or peeling near air registers

If stains appear primarily during heavy cooling use and not during rainfall, HVAC condensation is a likely cause. If the source is still unclear, how to detect HVAC condensation leaks explains how to trace whether the moisture is coming from ducts, vents, the drain pan, or the condensate line.

Dripping or wet air vents

Air vents should deliver conditioned air without releasing moisture. When vents begin to drip or feel wet, condensation is forming either inside the duct or directly on the vent surface.

You may notice:

• Water droplets forming on vent covers
• Occasional dripping from ceiling vents
• Rust forming around metal vent edges
• Damp areas directly below vents

This typically indicates that humidity levels are high enough to cause condensation where cold air exits the system. Repeated moisture exposure in this area can damage surrounding ceiling materials.

Musty odors when the HVAC system runs

Unpleasant, damp odors during HVAC operation often signal that moisture is accumulating somewhere within the system or ductwork.

These smells may become noticeable:

• Shortly after the system turns on
• During extended cooling cycles
• In specific rooms connected to affected ducts

Musty odors suggest that condensation is not only present but lingering long enough to support microbial growth. If left unaddressed, this can eventually lead to visible mold development.

Early warning signs of this progression are explained in signs of mold growth from HVAC condensation.

How HVAC Condensation Problems Are Often Misdiagnosed

HVAC condensation problems are frequently mistaken for other types of moisture issues. Because water can appear in ceilings, walls, or near equipment, many homeowners assume the source is a plumbing leak or roof failure. Misdiagnosing the source can delay proper action and allow damage to worsen.

Understanding how condensation behaves differently from other water sources helps you narrow down the cause more accurately.

Condensation vs. plumbing leaks

Plumbing leaks tend to produce consistent moisture regardless of HVAC operation. In contrast, condensation-related moisture is often tied directly to cooling cycles.

Key differences include:

• Condensation: Appears when the system is running and may stop when cooling cycles end
• Plumbing leaks: Continue regardless of HVAC use
• Condensation: Often located near ducts, vents, or air handlers
• Plumbing leaks: Typically originate from pipes, fixtures, or specific plumbing lines

If moisture appears only during heavy HVAC use, condensation is more likely the source.

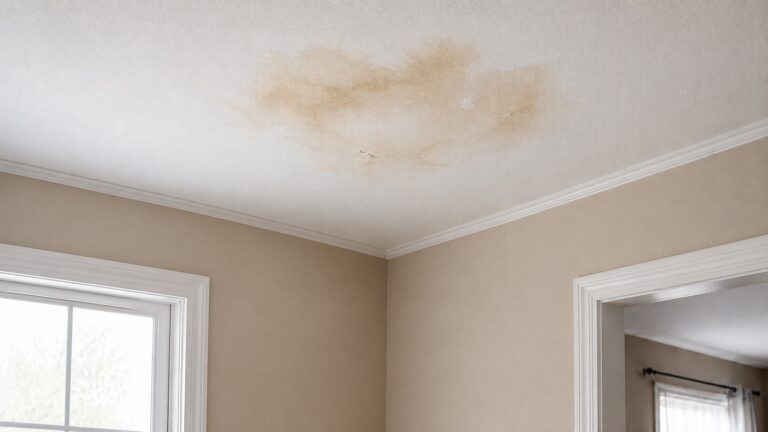

Condensation vs. roof leaks

Roof leaks are usually associated with rainfall, while HVAC condensation problems are tied to indoor humidity and cooling activity.

To distinguish between the two, consider:

• Condensation: Often appears during hot, humid days with active cooling
• Roof leaks: Occur during or after rainstorms
• Condensation: Commonly localized around vents or duct paths
• Roof leaks: May spread unpredictably across ceilings

If ceiling stains develop without any rain events, condensation should be considered as a possible cause.

Intermittent moisture that disappears

One of the most confusing aspects of HVAC condensation problems is that moisture may appear and disappear depending on system use. This leads many homeowners to assume the issue has resolved on its own.

In reality, intermittent condensation can still cause long-term damage. Moisture may evaporate from visible surfaces but remain trapped inside insulation, drywall, or duct systems.

This is why recurring moisture issues should never be ignored, even if they seem temporary. Repeated cycles often indicate underlying problems that require further investigation, such as those covered in how to detect HVAC condensation leaks.

When HVAC Condensation Becomes a Mold or Structural Risk

As HVAC condensation problems continue, the risk shifts from surface moisture to hidden damage. Once water reaches drywall, duct insulation, ceiling cavities, or nearby framing, it can support mold growth, staining, corrosion, and material deterioration.

Moisture spreading into drywall and ceilings

Drywall is highly susceptible to moisture damage. When condensation reaches ceiling cavities or wall surfaces, it can lead to:

• Discoloration and staining
• Soft or sagging areas
• Paint bubbling or peeling

Even small amounts of repeated moisture exposure can gradually weaken drywall and allow hidden mold growth to begin behind the surface.

Insulation retaining moisture

Wet insulation is one of the most common hidden consequences of HVAC condensation problems. Once insulation absorbs moisture, it becomes difficult to dry completely.

This can lead to:

• Reduced thermal performance
• Persistent damp conditions
• Increased mold risk

Because insulation often sits behind walls or above ceilings, this type of damage can go unnoticed for extended periods.

Mold-friendly conditions developing over time

Condensation becomes a mold concern when the same duct, vent, insulation, or ceiling area stays damp across repeated cooling cycles.

Risk factors include:

• Repeated condensation in enclosed spaces
• Limited airflow in ducts or cavities
• Warm temperatures combined with high humidity

Mold may not appear right away, but repeated damp cooling cycles can allow growth to begin inside insulation, duct wrap, ceiling cavities, or other hidden materials.

Corrosion and material deterioration

Metal components exposed to ongoing condensation can begin to rust or corrode. This may affect:

• Duct surfaces
• Drain pans
• Fasteners and structural supports

Corrosion not only weakens materials but can also contribute to airflow issues and further moisture buildup within the system.

When to Call a Professional for HVAC Condensation Problems

Some condensation is normal, but certain warning signs indicate that the problem has moved beyond basic system behavior and requires professional evaluation.

You should consider calling an HVAC technician if you notice:

• Water pooling repeatedly near the HVAC unit
• Condensation returning after cleanup or temporary fixes
• Ceiling stains continuing to expand near vents
• Persistent musty odors during system operation
• Visible mold growth near ducts or air handlers
• Drain lines that appear clogged or not draining at all
• Water appearing near electrical parts, wiring, controls, or the furnace cabinet

In these situations, the visible symptom is usually only part of the problem. A technician can check whether the moisture is coming from the drain system, duct insulation, airflow restrictions, equipment condition, or another HVAC-related source.

If condensation problems are confirmed, preventing them from recurring is just as important as addressing the immediate symptoms. Long-term solutions are covered in how to prevent HVAC condensation problems.

FAQ: HVAC Condensation Problems

Key Takeaways

• Normal HVAC condensation should drain through the pan and condensate line without wetting nearby materials
• Water near the unit, sweating ducts, wet insulation, dripping vents, and ceiling stains near registers are warning signs
• Condensation is more likely when moisture appears during cooling cycles instead of during rain or plumbing use
• Musty odors, damp insulation, and repeated wet-dry cycles increase the risk of hidden mold growth
• Water near wiring, controls, or furnace components should be treated as a safety issue
• If symptoms keep returning, the next step is to trace the source rather than only wiping up visible moisture
